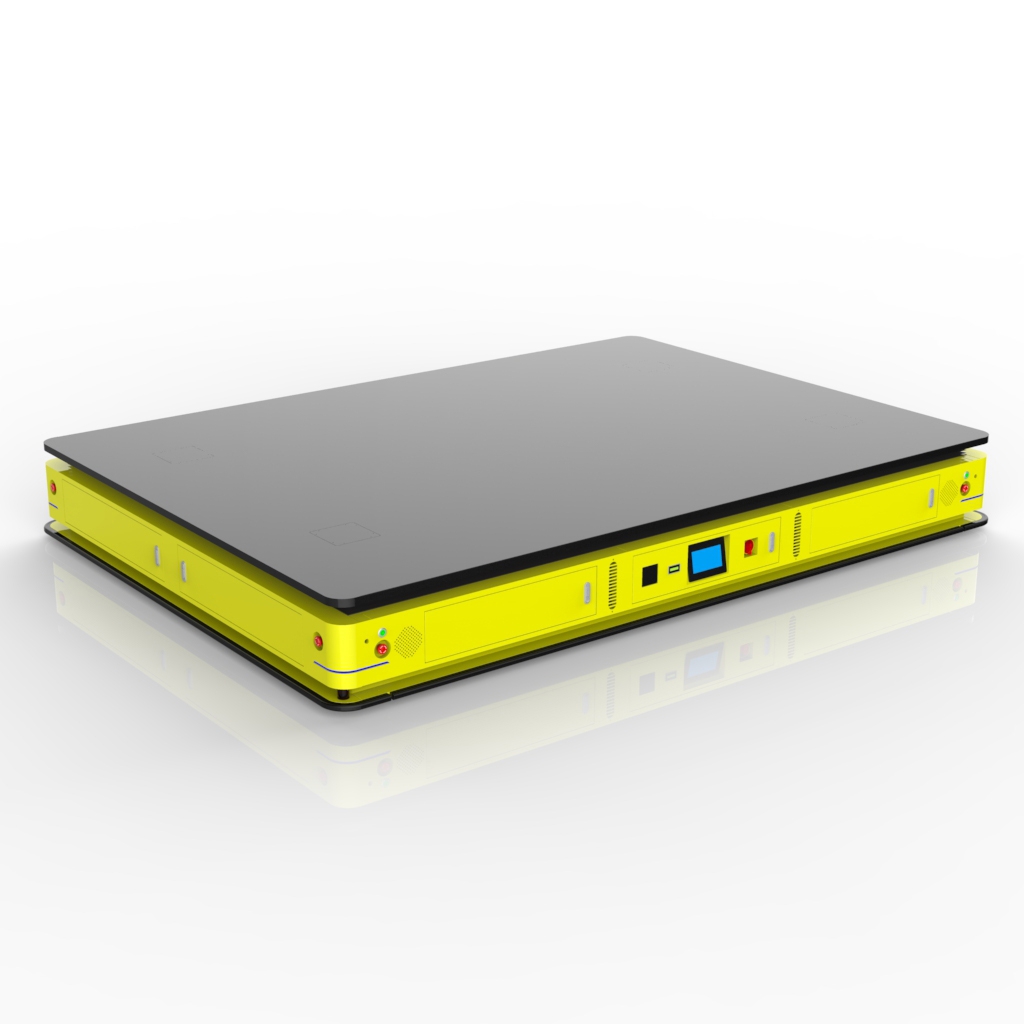

双舵轮举升AGV Double wheel lifting AGV

规格参数介绍Parameters of Specification Introduction
1、外形尺寸overall dimension:
长3550mm*宽2558mm*总高450mm(初始高度)AGV顶升板平面尺寸:长3492mm*宽2500mm;举升行程:100mm((举升后总高550mm);(定制尺寸)(length 3550mm * width 2558mm * total height 450mm (initial height) AGV lifting plate plane dimensions: length 3492mm * width 2500mm; Lifting stroke: 100mm (total height after lifting 550mm); (Customized size)
2、额定负载rated load:
20T(可定制)20T (customizable)
3导航方式 Navigation :磁条导航Magnetic stripe navigation
4、驱动方式 Drive Mode :双舵轮驱动Double wheel drive
5、运行方式 Operation Mode :前进、后退、横移、原地旋转Forward、Backward、Lateral displacement、Spin around
6、行走速度 Travel Speed:0-35m/min(可调);
7、续航时间 Battery Life: 8小时 / 8 hours

产品简介 Product Introduction:

  • 多传感器融合导航,安全可靠、柔性高效、智能调度无缝对接 MES/WMS/ERP系统。

        Multi sensor fusion navigation, safe and reliable, flexible and efficient,

       intelligent scheduling seamless integration with MES/WMS/ERP system.

  • 替代传统的人工物料搬运方式,无需人工干预,可24小时不间断 工作,适应不同的生产环境,高强度、高灵活性的工作。

         广泛应用于电子制造、汽车制造、化工、纺织、烟草、卫浴、船舶、冶金 、 食 品 、 医 疗 等 领 域 。

      Replacing traditional manual material handling methods, without manual intervention,

      it can work 24 hours without interruption, adapt to different production environments,

     work with high intensity and flexibility, and is widely used in fields such as electronic manufacturing,

    automotive manufacturing, chemical industry, textile, tobacco, bathroom, shipbuilding, metallurgy, food, medical treatment, etc.
