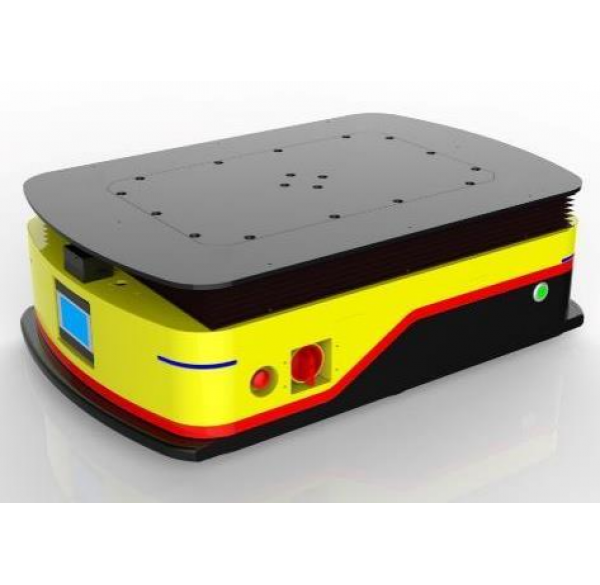

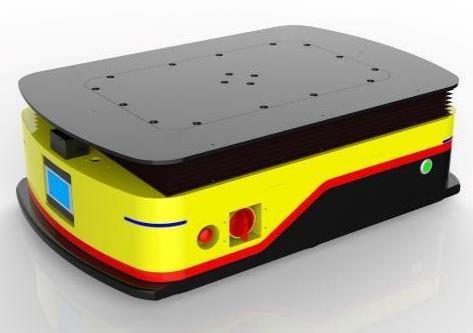

双向举升式AGV Two-way lift AGV

产品型号Product Model (TL-JS-300SX-001)
规格参数介绍Parameters of Specification Introduction
1、导航方式 Navigation :磁条导航Magnetic stripe navigation
2、外形尺寸 Overall Dimensions :L950mm*W600mm*H300mm/ 举升行程lifting stroke-50mm(Or customized to the required size)
3、载重能力 Loading Capacity:
最大举升重量200kg Maximum liftingmass200Kg
4、自身重量 Vehicle Weight:150Kg
5、驱动方式 Drive Mode :差速驱动Differential drive
6、运行方式 Operation Mode :前进、后退、原地旋转Forward、Backward、Spin around
7、行走速度 Travel Speed :≤40m/min
8、爬坡能力 Climbing Ability:≤2°
9、导航精度 Navigation Accuracy :±10mm
10、停止精度 Stop Accuracy :±10mm
11、充电方式 Charging Mode :手动充电或自动充电 Manual or automatic charging
12、人机界面 HMI :4.3寸触摸屏4.3 inch touch screen
13、报警方式 Alarm method :声光报警 Audible and visual alarm
14、通讯方式 Communication method: WIFI网络/射频网络 WIFI network / RF network
15、充电时间 Charging Time:
普通充5小时,快2.5小时 Normal charging for 5 hours, fast charging for 2.5 hours
16、续航时间 Battery Life: 8小时 / 8 hours
17、电池规格 Battery Specification: 24V/40Ah(磷酸铁锂电池Lithium iron phosphatebattery)
18、安全防护 Safety Protection :障碍物传感器+接触式保险杠+急停按钮 Obstacle
sensor+Contactbumper+Emergencystopbutton
19、设计寿命 Design life: >80000h

产品简介 Product Introduction:

  • 多传感器融合导航,安全可靠、柔性高效、智能调度无缝对接 MES/WMS/ERP系统。

        Multi sensor fusion navigation, safe and reliable, flexible and efficient,

       intelligent scheduling seamless integration with MES/WMS/ERP system.

  • 替代传统的人工物料搬运方式,无需人工干预,可24小时不间断 工作,适应不同的生产环境,高强度、高灵活性的工作。

         广泛应用于电子制造、汽车制造、化工、纺织、烟草、卫浴、船舶、冶金 、 食 品 、 医 疗 等 领 域 。

      Replacing traditional manual material handling methods, without manual intervention,

      it can work 24 hours without interruption, adapt to different production environments,

     work with high intensity and flexibility, and is widely used in fields such as electronic manufacturing,

    automotive manufacturing, chemical industry, textile, tobacco, bathroom, shipbuilding, metallurgy, food, medical treatment, etc.
